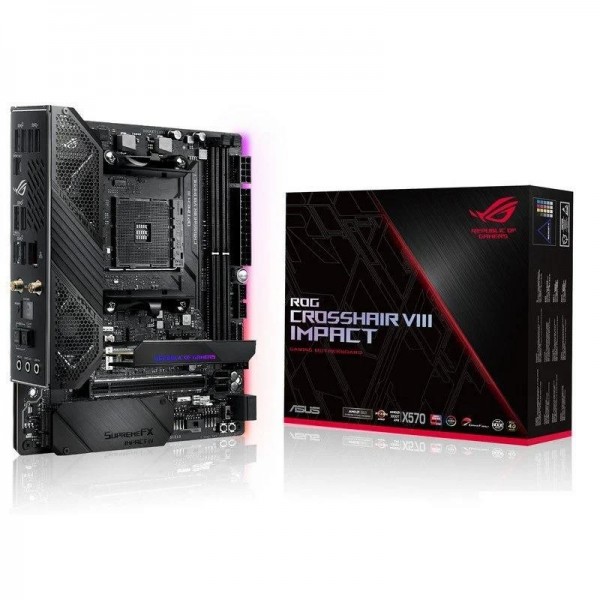

PLACA BASE ASUS TOG CROSSHAIR VIII IMPACT X570 WIFI ATX AM4 2XDDR4 USB-C

Características:

• Zócalo AM4: Compatible con los procesadores AMD Ryzen? de 3.ª y 2.ª Gen para maximizar la velocidad y conectividad con dos unidades M.2, USB 3.2 Gen. 2 y AMD StoreMI.
• SO-DIMM.2: Tarjeta de ampliación incluida con dos ranuras M.2 y un disipador térmico que permite que los SSD funcionen a pleno rendimiento.
• Diseño térmico completo: Disipador activo combinado para el VRM y el chipset y una placa trasera de aluminio con un caloducto que añade masa y ayuda a absorber más temperatura.
• Wi-Fi 6 (802.11ax) con MU-MIMO, Intel Gigabit Ethernet con ASUS LANGuard y las funciones GameFirst V.
• Funciones de refrigeración líquida avanzadas: La Zona de Refrigeración Líquida ROG; y los conectores para bombas de agua y radiadores facilitan la integración de sistemas a medida.
• 5-Way Optimization: Ajustes automáticos de todo el sistema con perfiles de overclocking y refrigeración creados específicamente para tu equipo.
• DIY sencillo: Cajetín de E/S, ASUS SafeSlot e IMPACT Control Card VI, que añade la funciones BIOS Flashback, Clr CMOS, Q-Code y FlexKey.
• Personalización inigualable: Iluminación Aura Sync RGB, incluye conectores RGB y conectores direccionables de 2.ª Gen.
• El sonido que lidera la industria: SupremeFX S1220 y ESS® SABRE9023P para un sonido de alta fidelidad, Sonic Studio III y DTS Sound Unbound.

Especificaciones Asus ROG Crosshair VIII Impact

• CPU
  • AMD AM4 Socket 3rd and 2nd AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors
• Chipset
  • AMD X570
• Memory
  • 3rd Gen AMD Ryzen? Processors
  • 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
  • 2nd Gen AMD Ryzen? Processors
  • 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
  • 2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors
  • 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
  • Dual Channel Memory Architecture
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • * Double Capcity DRAM support depends on the DRAM models
• Expansion Slots
  • 3rd Gen AMD Ryzen? Processors
  • 1 x PCIe 4.0 x16 (x16 mode)
  • 2nd Gen AMD Ryzen? Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
  • 2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors
  • 1 x PCIe 3.0 x16 (x8 mode)
• Storage
  • 3rd Gen AMD Ryzen? Processors :
  • 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
  • 2nd Gen AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors :
  • 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • AMD X570 chipset :
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
  • 4 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• LAN
  • Intel® I211-AT
  • ASUS LAN Guard
  • ROG GameFirst Technology
• Wireless Data Network
  • Intel® Wi-Fi 6 AX200
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
  • Up to 2.4Gbps transfer speed
• Bluetooth
  • Bluetooth® 5.0
• Audio
  • ROG SupremeFX 8-Channel High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • SupremeFX Shielding Technology
  • ESS® ES9023P
  • Supports up to 32-Bit/192kHz playback
  • Audio Feature :
  • Sonic Studio III + Sonic Studio Virtual Mixer
  • DTS® Sound Unbound
  • Optical S/PDIF out port(s) at back panel
  • Sonic Radar III
  • * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  • 3rd Gen AMD RyzenTM Processors :
  • 2 x USB 3.2 Gen 2 port(s)
  • 3rd Gen AMD RyzenTM Processors :
  • 2 x USB 3.2 Gen 1 port(s)
  • 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors :
  • 4 x USB 3.2 Gen 1 port(s)
  • AMD X570 chipset :
  • 1 x USB 3.2 Gen 2 front panel connector port(s)
  • AMD X570 chipset :
  • 4 x USB 3.2 Gen 2 port(s)
  • AMD X570 chipset :
  • 2 x USB 3.2 Gen 1 port(s)
  • AMD X570 chipset :
  • 2 x USB 2.0 port(s)
• ROG Exclusive Features
  • Extreme Engine Digi+ :
  • Infineon TDA21472 Power Stage
  • MicroFine Alloy Chokes
  • 10K Black Metallic Capacitors
  • ROG Extreme OC kit :
  • OptiMem III
  • Safe Boot button
  • Slow Mode
  • LN2 Mode
  • Extreme Tweaker
  • ROG Patented Pre-mounted I/O Shield
  • ROG Exclusive Software
  • Sonic Studio III + Sonic Studio Virtual Mixer
  • RAMCache III
  • RAMDisk
  • CPU-Z
  • GameFirst V
  • Sonic Radar III
• Special Features
  • ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
  • 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
  • AURA :
  • Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  • ASUS Exclusive Features :
  • USB BIOS Flashback®
  • AI Suite 3
  • Ai Charger
  • ASUS CrashFree BIOS 3
  • Armoury Crate
  • ASUS NODE: hardware control interface
  • ASUS EZ Flash 3
  • ASUS C.P.R.(CPU Parameter Recall)
  • Clear CMOS Button
  • Reset Button
  • Start Button
  • ReTry button
  • ASUS Q-Design :
  • ASUS Q-Code
  • ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  • ASUS Q-Slot
  • ASUS Q-DIMM
  • ASUS Q-Connector
• Back I/O Ports
  • 1 x Optical S/PDIF out
  • 1 x Clear CMOS button(s)
  • 1 x USB BIOS Flashback® Button(s)
  • 1 x ASUS Wi-Fi Module
  • 1 x Q-Code LED
  • 1 x Reset Button
  • 3 x LED-illuminated audio jacks
  • 2 x USB 3.2 Gen 1 (up to 5Gbps) ports
  • 6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
  • Anti-surge LAN (RJ45) port
• Internal I/O Ports
  • 1 x Aura RGB Strip Headers
  • 2 x Addressable Gen 2 header(s)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
  • 4 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x W_PUMP+ connector
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Slow Mode switch(es)
  • 1 x Reset button(s)
  • 1 x Node Connector(s)
  • 1 x LN2 Mode jumper(s)
  • 1 x Safe Boot button
  • 1 x ReTry button
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x W_IN header
  • 1 x W_OUT header
  • 1 x W_FLOW header
  • 1 x Start button
  • 2 x Radiator Fan Headers
  • 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
  • 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
• Accessories
  • User's manual
  • 4 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x ROG big sticker
  • 2 x M.2 screw kit (short screw and mount)
  • 1 x Wi-Fi Antenna(s)
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1 x Panel cable
  • 1 x ROG coaster(s)
  • 1 x ROG Thank you card
  • 1 x ROG SO-DIMM.2 with heatsinks
  • 1 x 2-in-1 Rubber pad
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
• Manageability
  • WOL, PXE
• Operating System
  • Windows® 10 64-bit
• Form Factor
• Mini-DTX Form Factor
